QUADRO

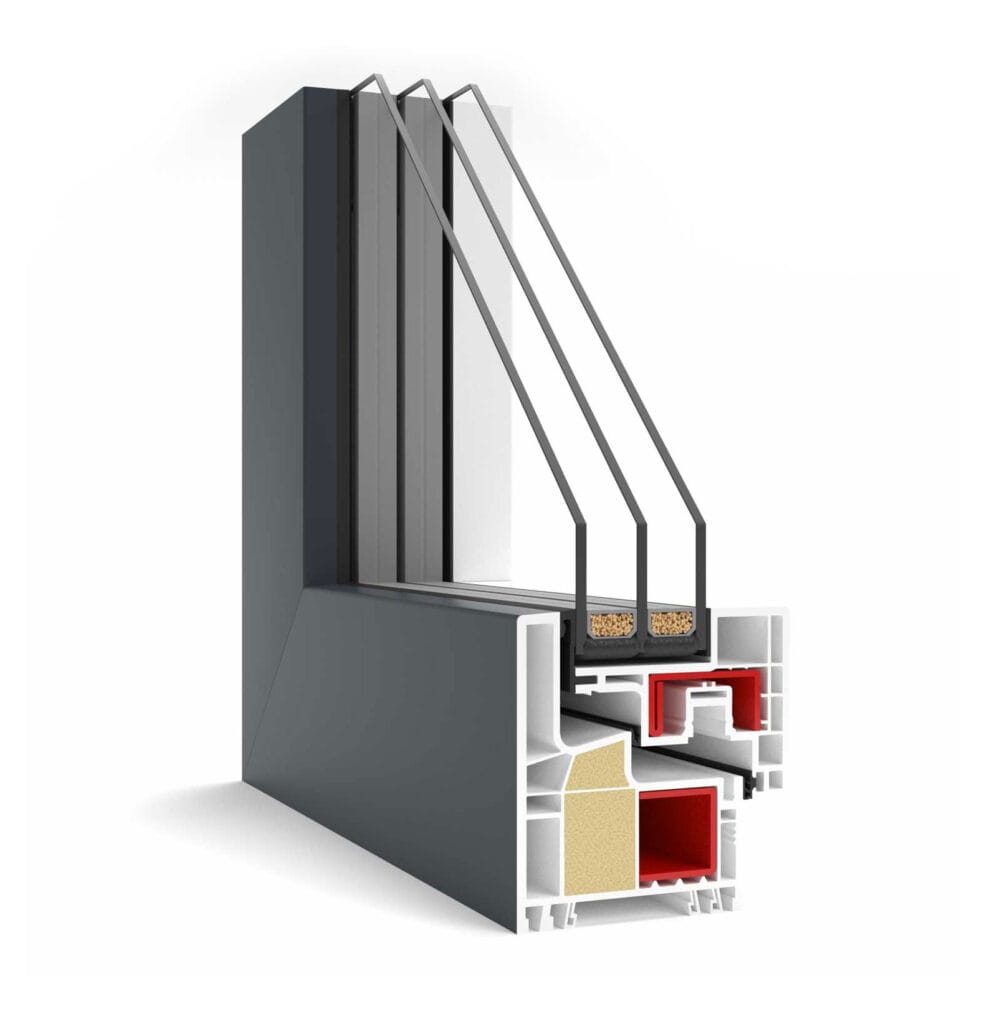

The QUADRO window system, based on the GEALAN-KUBUS® profile, offers a cutting-edge approach to window design with a focus on minimalism and energy efficiency. This system, with its concealed leaf and contemporary contours, creates a seamless integration into modern architectural concepts, promoting transparency and natural light.

System Parameters:

• Number of Chambers: 4
• Installation Depth: 82.5 mm
• Heat Transfer Coefficient (Uw): 0.7 W/m²K
• Weighted Sound Reduction Index (RW): 30-48 dB
• Glazing Units: Up to 48 mm thick
• Profile: GEALAN-KUBUS® clear, straight contours on both inside and outside with concealed leaf design
