VECTOR

The VECTOR window system, based on VEKA Softline 82 MD profiles, is specifically designed for energy-efficient and passive houses, offering top-notch performance in thermal insulation, soundproofing, and security. With a robust structure and advanced features, it stands as an ideal solution for modern architectural projects aiming for high performance and low energy consumption.

System Parameters:

• Number of Chambers: 7
• Installation Depth: 82 mm
• Heat Transfer Coefficient (Uw): 0.77 W/m²K
• Weighted Sound Reduction Index (RW): 30-48 dB
• Glazing Units: Up to 54 mm thick

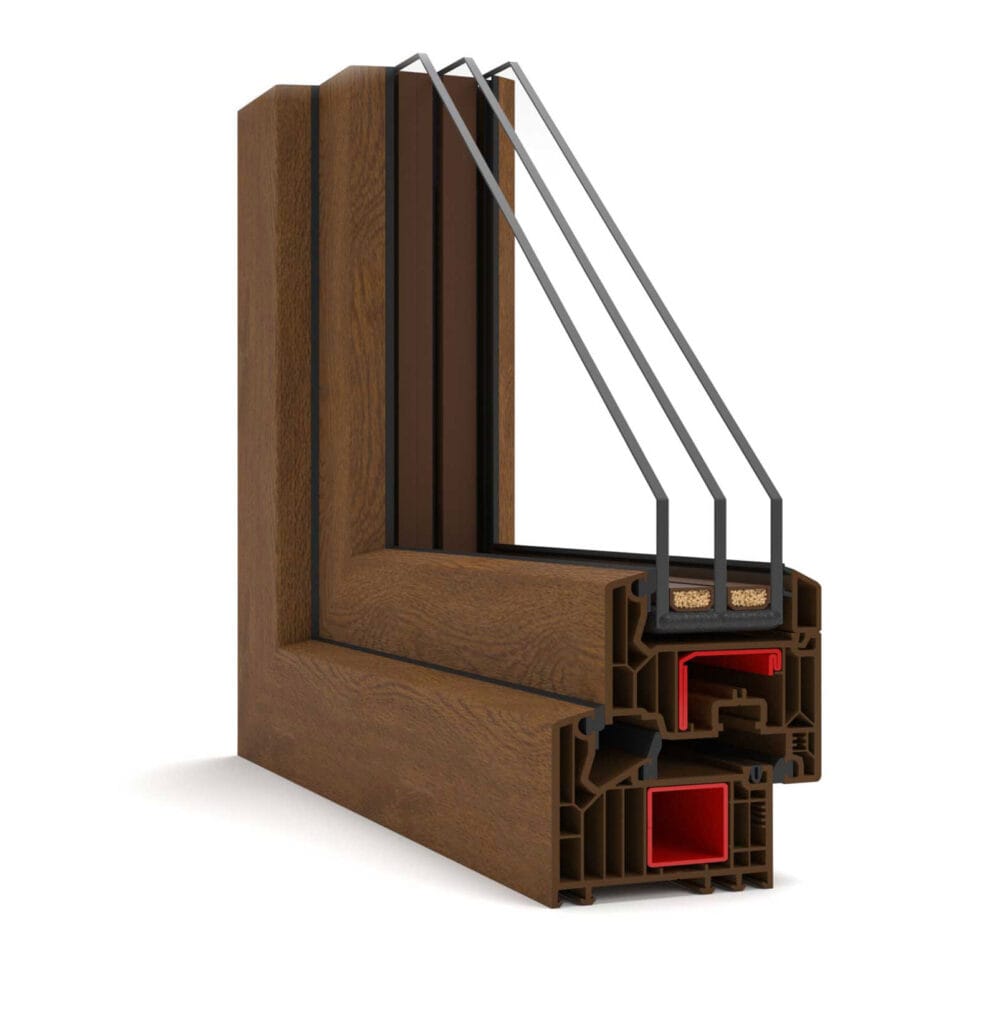

• Profile: 7-chamber frame and 6-chamber leaf profile with advanced sealing technology
